In the world of software development, databases play a crucial role in storing and managing data. Java Database Connectivity (JDBC) is a Java API that provides a standardized way to interact with databases. It allows Java applications to connect, retrieve, manipulate, and update data in various database systems, making it an essential component for developers working with data-driven applications.

This article serves as an introduction to JDBC, explaining its significance, architecture, and the basic concepts involved. We will explore the core components of JDBC, discuss its advantages, and provide practical examples to demonstrate its usage.

What is JDBC?

Java Database Connectivity (JDBC) is an API for Java that lets relational databases be used with Java applications. It gives the application and the database management system (DBMS) a set of classes and interfaces that make it easier for them to communicate with each other. With JDBC, developers can set up connections, run SQL statements, and process result sets, among other things.

JDBC is a link between the Java programming language and the underlying database systems. It lets developers use a unified programming interface to work with different databases. It gives a standard way to work with data, no matter what database vendor or technology is being used.

Key Components of JDBC

JDBC (Java Database Connectivity) comprises several essential components that work together to enable database connectivity and interaction within Java applications. Understanding these components is crucial for mastering database connectivity with JDBC. Let's explore the key components of JDBC:

JDBC API (Application Programming Interface):‍

The JDBC API is a set of classes and interfaces provided by Java for database connectivity. It offers a standardized way to interact with databases, regardless of the specific database vendor or technology.

JDBC Drivers:

The connection between a Java application and a database system is made through JDBC drivers, which are implementation-specific components. Most of the time, each database vendor has its own JDBC driver that lets Java applications talk to their own databases. JDBC drivers handle the low-level communication between an application and a database. They turn calls to the JDBC API into commands that the database understands.

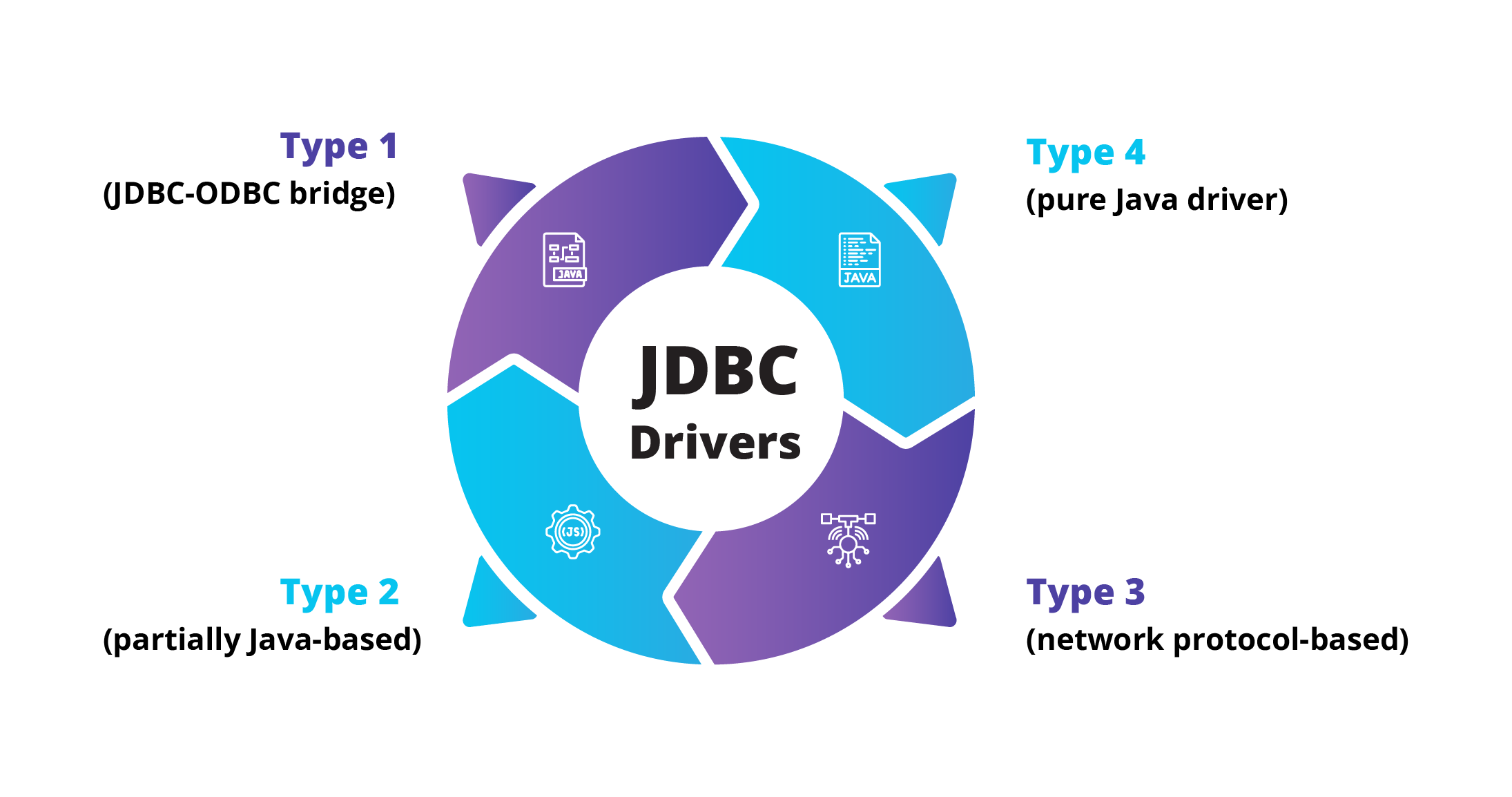

There are four types of JDBC drivers:

Type 1 (JDBC-ODBC bridge):

This driver uses the JDBC-ODBC bridge to connect to databases through the ODBC (Open Database Connectivity) API. It is suitable for accessing databases that have ODBC drivers but lack a JDBC driver.

Type 2 (partially Java-based):

This driver converts JDBC calls into database-specific API calls provided by the underlying database system. It may require native code to bridge the Java and database worlds.

Type 3 (network protocol-based):

This driver relies on a middleware server to communicate with the database. The middleware server acts as an intermediary between the Java application and the database, translating JDBC calls into a database-independent protocol that the server understands.

Type 4 (pure Java driver):

Also known as the thin driver, this driver communicates directly with the database server using the network protocol supported by the database system. It does not require any additional software or middleware.

JDBC Driver Manager

‍The JDBC Driver Manager is in charge of loading and managing the JDBC drivers that are available. It is the main part that controls the drivers and sets up connections to databases. The Driver Manager takes care of the details of connecting to the right driver based on the connection URL that was given.

Connection

‍A connection to a database is represented by the Connection interface. It has ways to set up a connection, run SQL statements, handle transactions, and retrieve the database's metadata. By giving the DriverManager class the database's URL, username, and password, one can obtain the Connection object.

Statement

Developers can run SQL statements against the database using the Statement interface. It has methods for executing queries, updating data, and getting results. Statement, PreparedStatement, and CallableStatement are the three kinds of statements. CallableStatement is used to run stored procedures, while PreparedStatement is used to run parameterized queries.

ResultSet

The result of a database query is shown by the ResultSet interface. It gives methods to move through the rows of the result set and get data from specific columns. The data returned by the database is stored in a tabular format in the ResultSet object. This makes it easy for developers to process and change the data as needed.

JDBC Test Suite

The JDBC API provides the JDBC Test Suite, which is a complete set of test cases. It lets developers and vendors make sure that their JDBC drivers work together and are compatible. The test suite checks different parts of JDBC, such as driver compliance, connection management, statement execution, and handling of result sets.

The Architecture of JDBC

The architecture of JDBC follows a layered approach, consisting of three main layers:

JDBC API

This layer provides a set of classes and interfaces that define the API for Java applications to interact with databases. It includes classes for establishing connections, executing queries, and processing results.

JDBC Driver Manager

The Driver Manager is responsible for loading and managing the JDBC drivers. It acts as a central component for managing the available drivers and creating connections to the database.

JDBC Drivers

JDBC drivers are implementation-specific components that provide the necessary functionality to connect to a particular database system.

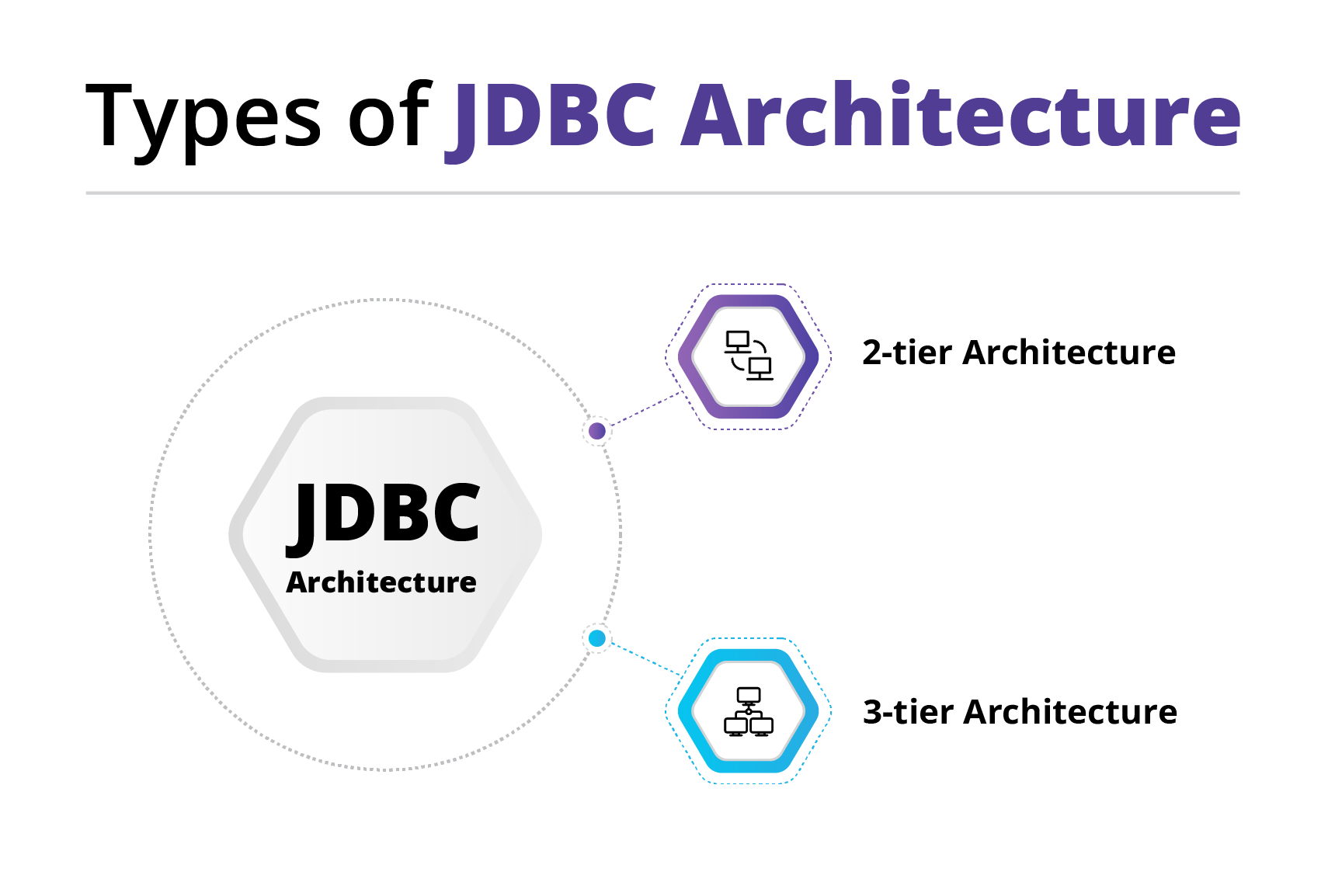

Types of JDBC Architecture: 2-tier and 3-tier

JDBC architecture determines how databases connect with applications. The two common types are the 2-tier and 3-tier architectures. Let's explore each one:

2-tier Architecture

• In this client-server architecture, the client directly communicates with the database server.
• The client handles presentation and business logic, connecting to the database using JDBC.
• Suitable for small applications with limited users, where database operations can be managed within the client.

3-tier Architecture

• This multi-tier architecture adds a layer between the client and the database server.
• The client handles the user interface, the middle tier contains business logic and processing, and the data tier stores and retrieves data.
• Offers benefits like scalability, maintainability, and improved security.
• Separating concerns into different tiers allows for easier maintenance and better application modularity.

The choice between 2-tier and 3-tier architectures depends on factors like application size, complexity, scalability needs, and desired separation of logic and data storage.

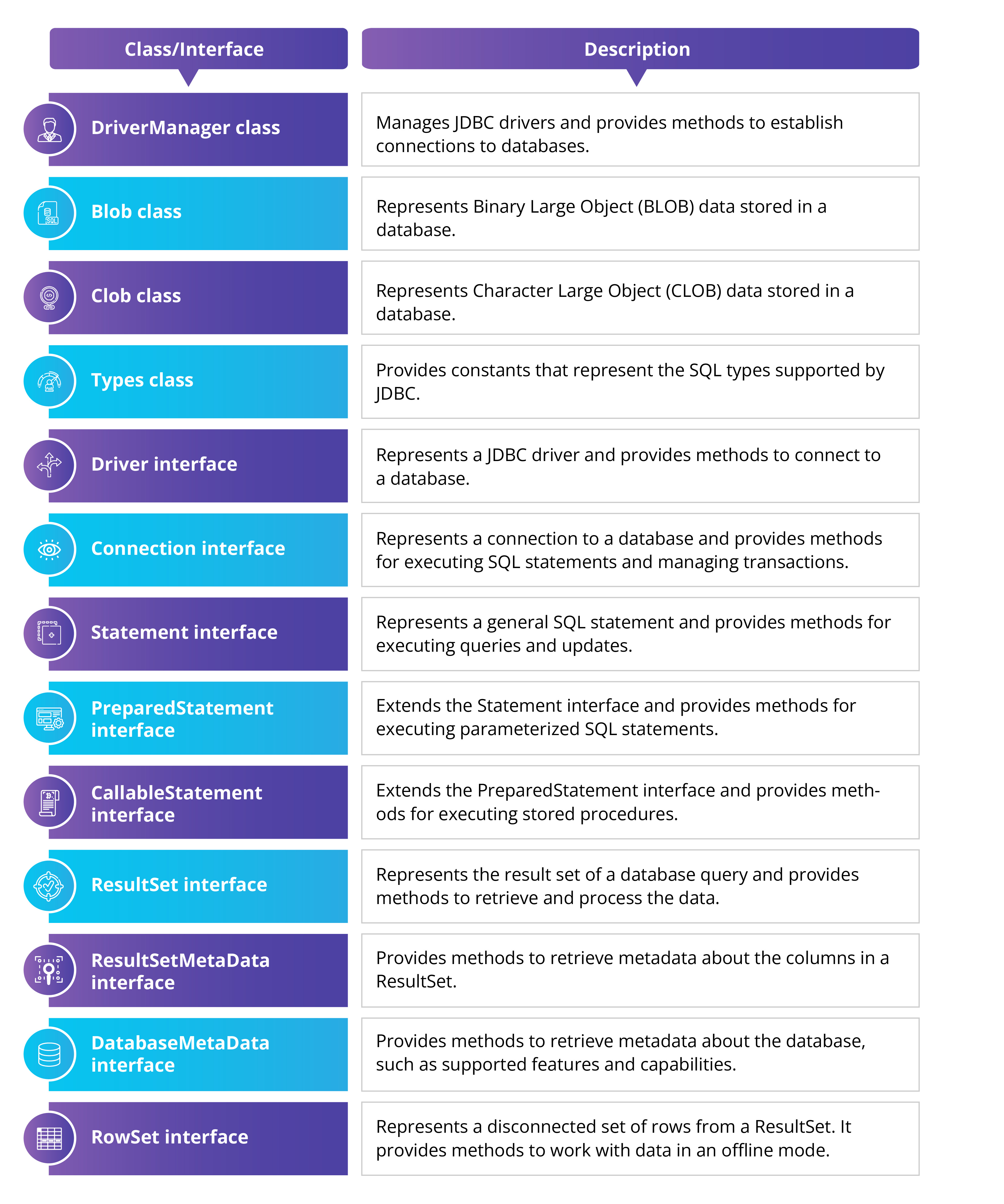

Popular Classes and Interfaces of JDBC API

The JDBC (Java Database Connectivity) API provides a comprehensive set of classes and interfaces that enable developers to interact with databases from Java applications. Understanding the key classes and interfaces of the JDBC API is essential for effectively utilizing JDBC in database connectivity. Let's explore some of the popular classes and interfaces of the JDBC API:

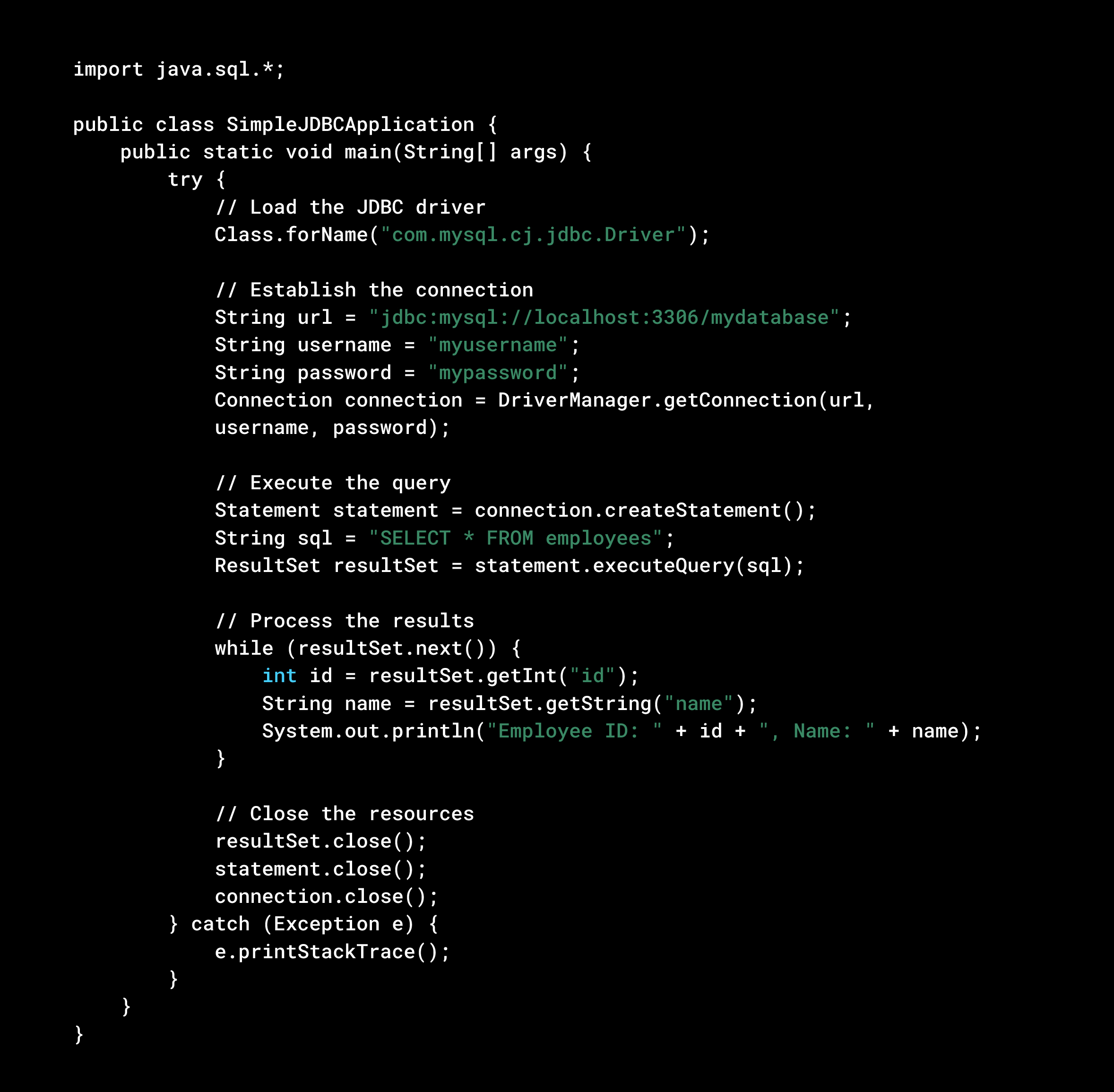

Working of JDBC: Creating a Simple JDBC Application

Now, let's have a look at the creation of a simple JDBC application that connects to a database, executes a query, and processes the results. We will assume we are working with a MySQL database.

In this example, we first load the MySQL JDBC driver using Class.forName(). Then, we establish a connection to the database using DriverManager.getConnection(). Next, we create a Statement object to execute the SQL query and retrieve the results using a ResultSet. Finally, we process the results by iterating over the ResultSet and printing the employee ID and name. Once we are done, we close the ResultSet, Statement, and Connection objects in reverse order.

Conclusion

In this article, we introduced JDBC and its significance in Java database programming. We explored the architecture of JDBC, the key components involved, and the basic steps required to use JDBC in a Java application. Understanding JDBC is essential for Java developers who work with databases and need to perform tasks such as connecting to databases, executing queries, and processing results.
